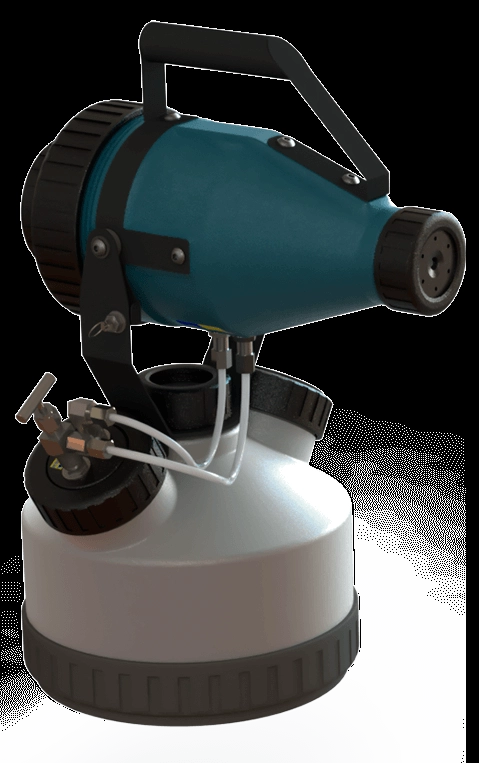

Introducing the groundbreaking SaniNova 700 – a revolutionary electric, hand-held portable ULV mister designed to redefine how we approach area decontamination. Whether you’re seeking domestic or heavy-duty commercial use, the SaniNova 700 is your answer to controlling viruses like coronavirus (COVID-19), bacteria such as salmonella, and fungi like Aspergillus fumigatus. This area decontamination system is a true game-changer.
The SaniNova 700 boasts an ingenious design that prioritises easy service and maintenance. You’ll require minimal tools to disassemble or reassemble the machine, and in a pinch, major components such as electrical elements can be manually stripped in the field.
Constructed with high-grade HD polyethylene highly resistant to chemicals, the SaniNova 700 exhibits robustness from the ground up. The use of only brass fittings, with no plastic bolts or nuts, ensures its durability and reliability. The machine has a potent 700 W Samsung motor, and its internal heat shield dramatically reduces air friction heat to the motor and nozzle housing.
The SaniNova 700 features the NOVA-MISTTM Vortical Adjustable Nozzle, ensuring the spray swirls on exit. This cutting-edge design enhances the machine’s effectiveness and coverage. The use of HDPE for the diffuser’s material and a replaceable faceplate further highlight the machine’s adaptability.
|
Motor / Blower Samsung |
VAC / Hz | 230-240 V AC – 50/60 Hz |
| AMPS | 5,6 | |
| WATTS | 700 W | |
| RPM | 37,000 +/- 1500 | |
| Air Volume – Output | 2910 L / min | |
| Vacuum | 24.0 kPa | |
| Formulation Tank | Capacity in Litres with Graduated markings | 6 L (std), 4L, 5L and 9L (optional) |
| Flow Rate Valve | Adjustable / Variable Output | Needle Valve, Brass (SSTL – Optional) |
| Maximum Flow Rate | 60 L / h | |
| Set Flow Rate Valves | FSFR Valves, BRASS (SSTL – Optional) | Set of 5: #20 = 5 L / h, #28 = 10 L / h, #37 = 16 L / h, #42 = 21 L / h, #47 = 26 L / h |
| Droplet Range | Visible* metres | 15-20 metres |
| Particle Size Diameter | Measured in microns (µm) | 5 – 50 µm |
| Droplet size is determined by Formulation (Solution) Flow Rate adjustments. High Flow Rate = larger droplets. Low Flow rate = smaller droplets. The viscosity of the Formulation (Solution) also affects droplet sizing. | ||
| Nozzle | Vortical in that the spray swirls on exit | NOVA-MISTTM Vortical Adjustable Nozzle |
| DIFUSSER – Material | HDPE | |
| Face Plate Replaceable | Yes | |
| Air Bleed | Yes | |
| Material – Construction | Motor Housing/ Nozzle | HDPE |
| Formulation Tank | HDPE | |
| Protective Tank “Boot” | Rubber | |
| Fittings | BRASS (SSTL – Optional) | |
| External Delivery Lines | Nylon | |
| Internal Delivery Lines – Housing & Tank | BRASS (SSTL – Optional) | |
| “O” Ring Material / in-Tank Filter | VITON | |
| Multi-Purpose Use | Application of Insecticides, Fungicides, Foliar | |
| Fertilizers, Disinfectants, Sanitizers | ||
| Tank Opening Ports | YES – Each comply with W.H.O. Guidelines | >90mm diameter |
| Formulation Filter | In-Tank Push on Filter | SSTL Mesh with VITON Support |
| Warranty | Conditional | 24 Months |
| Shipping Dimensions (L x W x H) | 360 cm x 360 x 520 (mm) | |
| Volume (Packed) | Cubic Metres | 0.07 m³ |
| Shipping Weight | 6.6 kg | |
|
ADDITIONAL FEATURES |
||
| Screw Cap Assembly | No screws – plastic to plastic. Motor is secured in Housing with a Screw Cap, Nozzle is secured by a Screw Cap, Formulation Tank + Housing secured with a Screw Cap | |
| Internal Sound Damper | Noise Suppressor Capacitor | |
| Heat Sink – Heat Shied | The Page Sani Nova 700 needs to be created and this image will be substitute by the image of the SaniNova. | The Page Sani Nova 700 needs to be created and this image will be substitute by the image of the SaniNova. |
| Thermal Cut Out | For Motor Protection | |
| Torque Contro | Motor Torque Control to counter the motor wanting to spin inside of the Housing – completely elimination electric wiring twist | |
| 2 Part Wiring | To allow easy removal of Motor from the attached wiring for maintenance purposes. | |
The SaniNova 700 transcends a single purpose, boasting versatile functionality that accommodates the application of diverse solutions. From insecticides like Dyna Fog ULV Solution to fungicides like SaniCHick L, along with foliar fertilisers, disinfectants including SaniSilver, and sanitisers such as SaniBac, this machine offers a wide array of applications.
The formulation tank’s alignment with WHO guidelines guarantees readiness for various scenarios.
Efficient Dispersion for Thorough Treatment
The SaniNova 700 isn’t just another ULV machine – it’s your best ally in the fight against insects and microorganisms.
ULV machines, like the SaniNova 700, excel in efficiently dispersing disinfectants and chemicals by producing a fine cold mist of droplets. This dispersion method covers large areas and even hard-to-reach spaces, ensuring thorough and effective treatment.
Top Choice for Domestic and Commercial Applications
With its calibrated droplet size and accurate application, the SaniNova 700 delivers optimal results. Its easy maintenance, sturdy construction, and innovative features make it the top choice for both domestic and heavy-duty commercial applications.
Embrace the SaniNova 700 and step into a future where efficient area decontamination is within your grasp. Its powerful motor, versatile nozzle, and adaptable design make it a beacon of innovation. From controlling viruses to bacteria, fungi, and insects, the SaniNova 700 is your all-in-one solution for area decontamination. Choose SaniNova 700 for unparalleled results and a safer environment.
With SaniNova 700, you’re not just investing in a machine – you’re investing in your safety and well-being. Take the first step towards a cleaner, healthier future.
